Description
27×56 Small House Plan 8×17 Meter 3 Beds PDF Plan Hip Roof. This villa is modeling by SAM-ARCHITECT With 1 stories level. It’s has 3 bedrooms with 3 Bathrooms. Est. Price around 30-40k usd construction only, furniture not include.

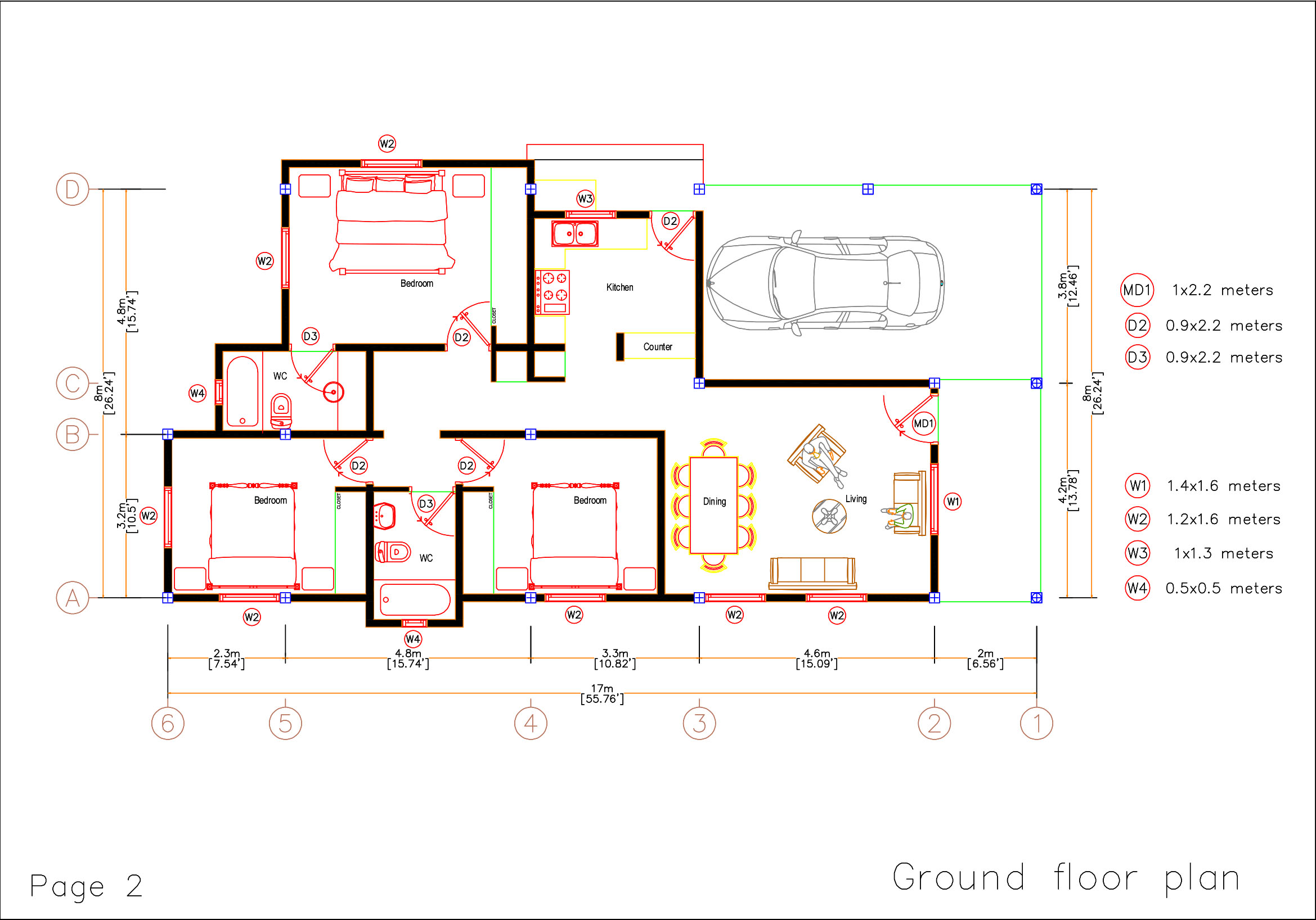

27×56 Small House Plan Ground Floor Plans Has:
For small family that looking for small house plan this house plan is perfect for you. Car Parking is at the right side of the house 3.8×6.6 meter. A nice Terrace entrance in front of the house 2×4.2 meters. When we are going from front door, a Living 5.2×4.2 meter is very perfect for this house it is nice and modern. Brightly Kitchen area 3.8×3.3 meter with counter bar, it is beautiful. A multi Bathroom size 1.6×2.6 meters. The washing area 1×3.3 meters.
The Master Bedroom size is 3.6×4.8 meters, it have 2 big glass sliding window with a king size bed, Makeup desk and closet , attached with bathroom 1.6×3 meter. Bedroom 2 size 4×3.2 meter and Bedroom 3 size 4×3.2 meters.
Exterior 27×56 Small House Plan:
Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.
The Roof Tile:
Finally, The Hip roof type is made from cement or zine tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.
The Back Elevation:
Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.
House Short Description:
Ground floor:
-Car Park is out side of the house
-Living room
-Kitchen and Dinning
-Storage
-3 Bedrooms
-2 bathrooms
First floor:
Cement or zine roof tilew
PLEASE MAKE SURE YOU HAVE CHECK the free sample plans
The 3D Bird View:
Interior design 3d:
For interior design of this house we do a simple design as it will lower cost the price to build.
The Elevation 3d:

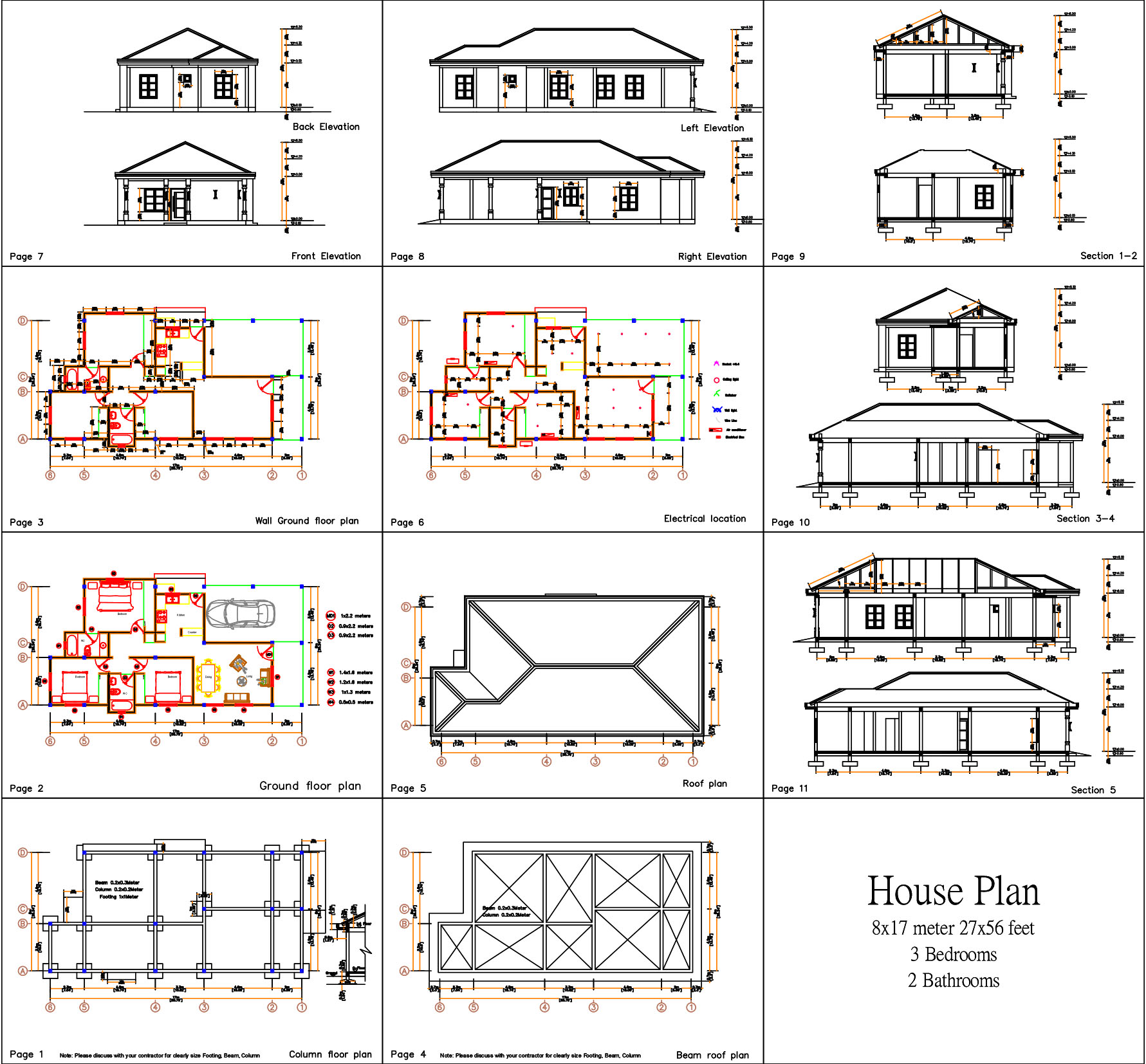

The PDF Layout Plans:
Buy this 27×56 Small House Plan:
This is a PDF Plan available for Instant Download.
3-Bedrooms 2-Baths home with mini washer/dryer room.
Building size: 27 feet wide, 56 feet deep. 8×17 meter 1 floor
Roof Type: Hip roof (cement tile or other supported type)
Foundation: Concrete or other supported material
For the reverse plan, please see other Model.
PLANS INCLUDE:
Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan
Roof Beam Plan
Roof Plan
Elevations plans
Cross Section plans
Ceiling Lighting location Plan
You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.
CUSTOM PLANS:
Unfortunately I’m unable to do custom plans at this time.
DISCLAIMER:
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.
Your files will be available to download once payment is confirmed.
I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
Your could Reach Us: Personal FB: Sophoat Toch
Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
