Small House Design 6×9 Meter 20×30 Feet 3 Beds


Buy this: Small House Design 6×9 Meter 20×30 Feet 3 Beds
-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. 4 Sections
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact

*Program We used: Autocad 2018 and Sketchup 2019


Categories: , Tag:


Small House Design 6×9 Meter 20×30 Feet 3 Beds PDF Full Plans. This villa is modeling with 2 stories level. It’s has 3 bedrooms. Est. Price around 27-33k usd construction only, furniture not include.

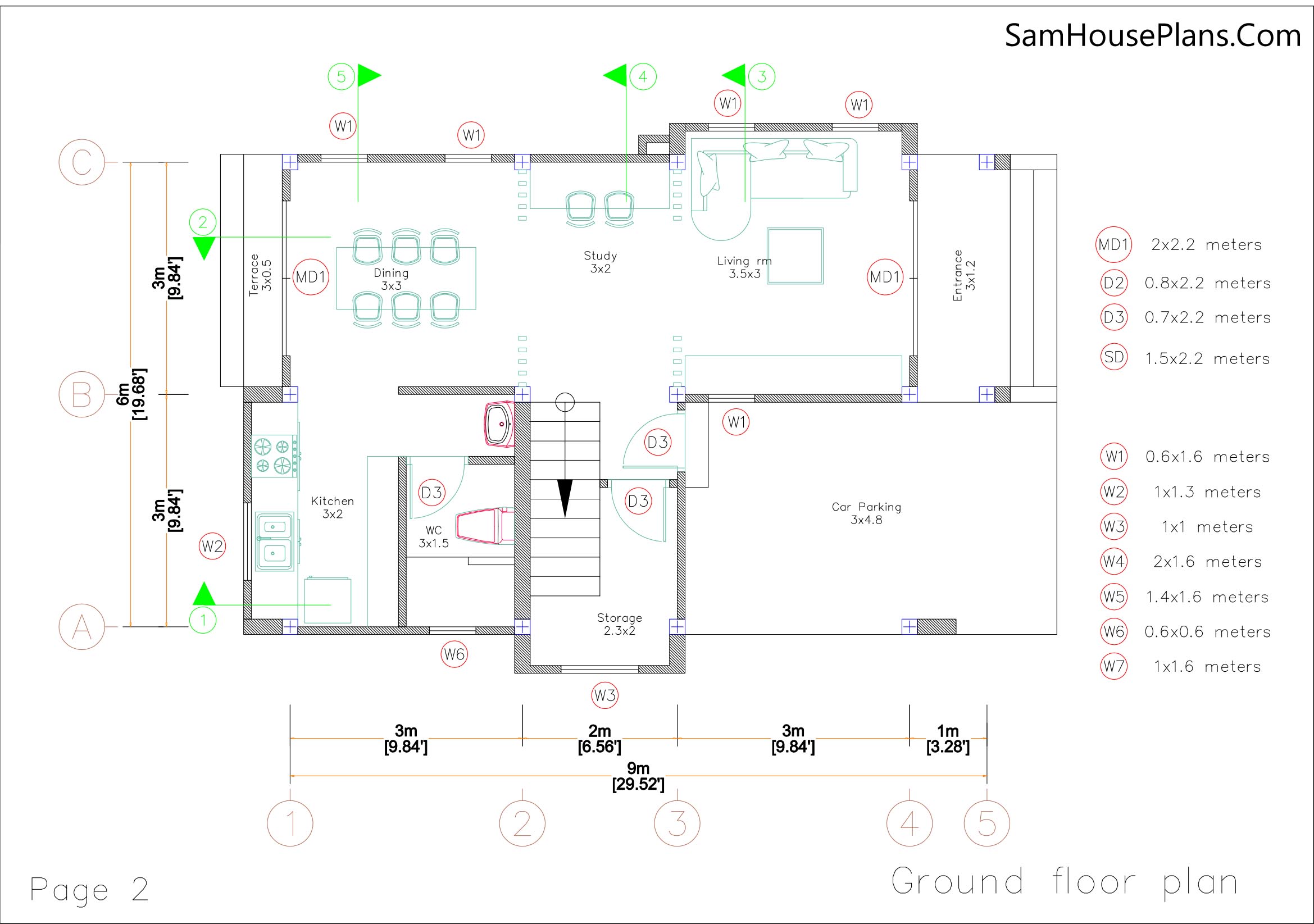

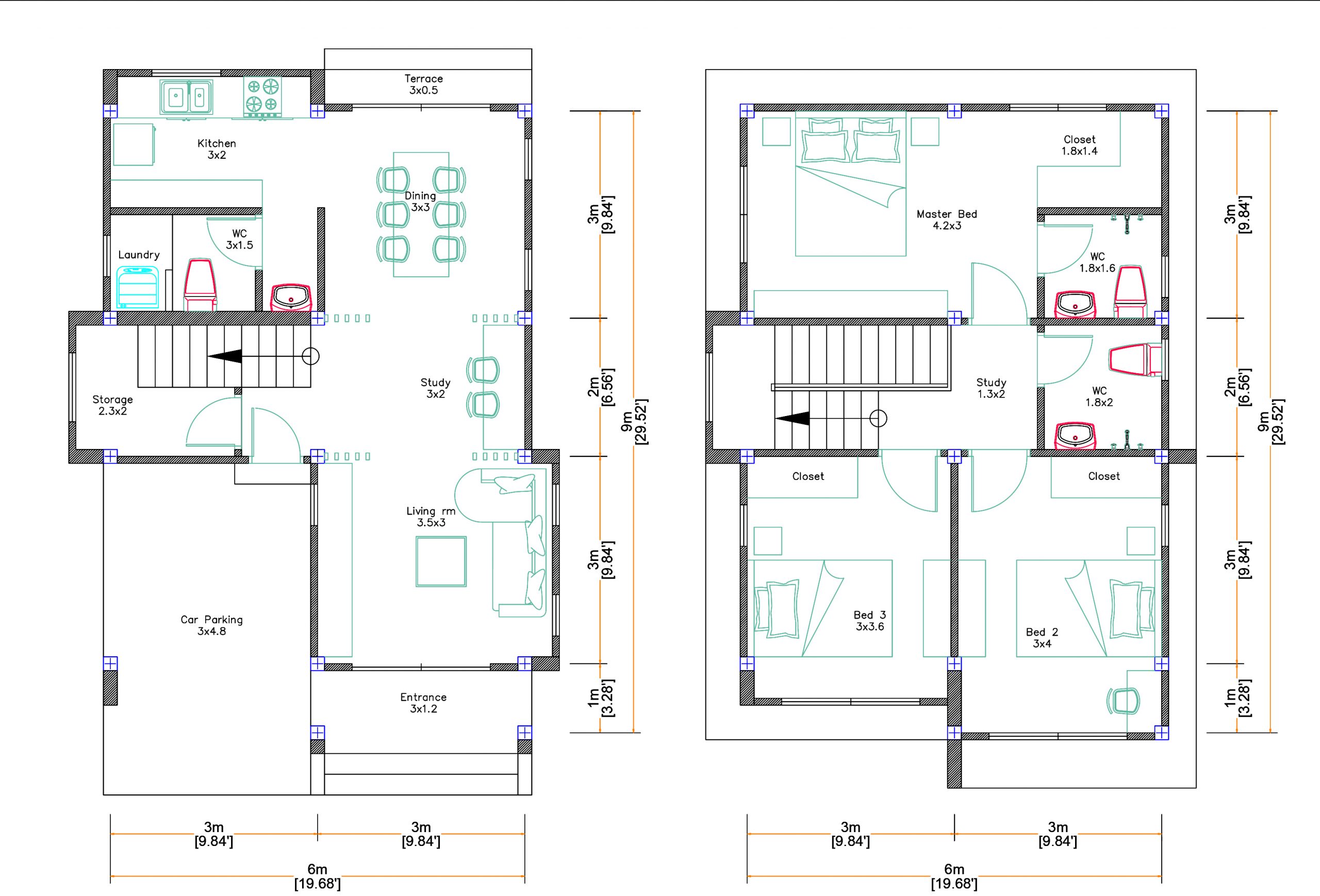

Small House Design 6×9 Ground Floor Plans Has:

If you looking for 3 Bedrooms house plan, You will love this layout plan, Ground floor, 1 car Parking is at the left side of the house 3×4.8 meters. A nice Terrace entrance in front of the house 3×1.2 meter. When we are going from front door, a small Living 3×3.5 meter is very perfect for this house it is nice and modern. Brightly Kitchen 3×2 meter, dining area 3×3 meter, it is clean and beautiful. A multi Bathroom size 3×1.5  meters with washing machine. Storage is under the stair 2.3×2 meter. Study area 3×2 meter.

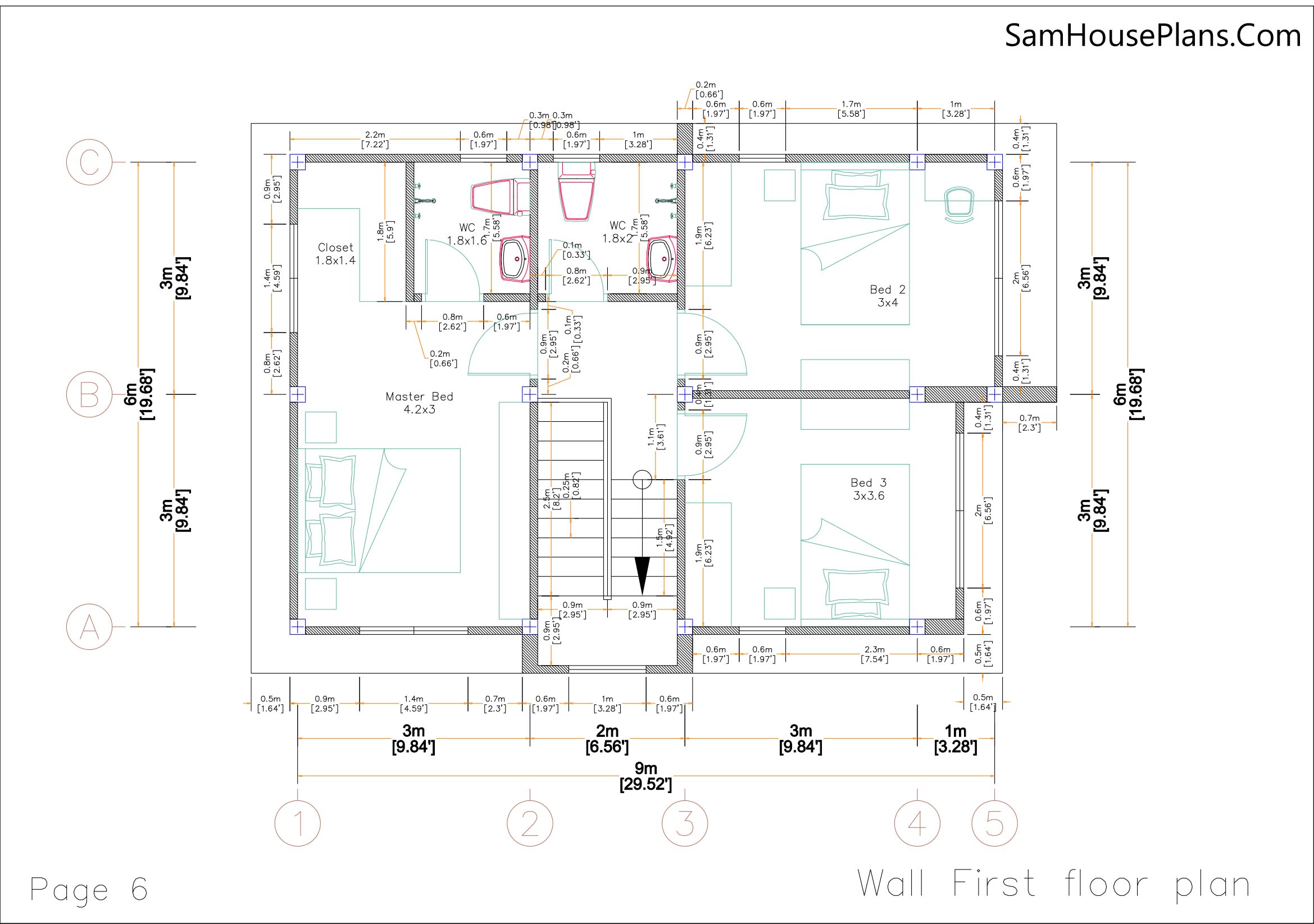

At first floor, hall 1.23×2 meter, Master Bedroom size is 4.2×3 meters, it have a big glass sliding window with a queen size bed, Makeup desk and walk in closet 1.8×1.4 meter, attached with bathroom 1.8×1.6 meter no balcony. Bedroom 2 size 3×4 meter, bedroom 3 size 3×3.6 meters. Bathroom 1.8×2 meters.

Exterior Small House Design 6×9:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Hip Roof Tile:

Finally, The Hip roof type is made from zine roof tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

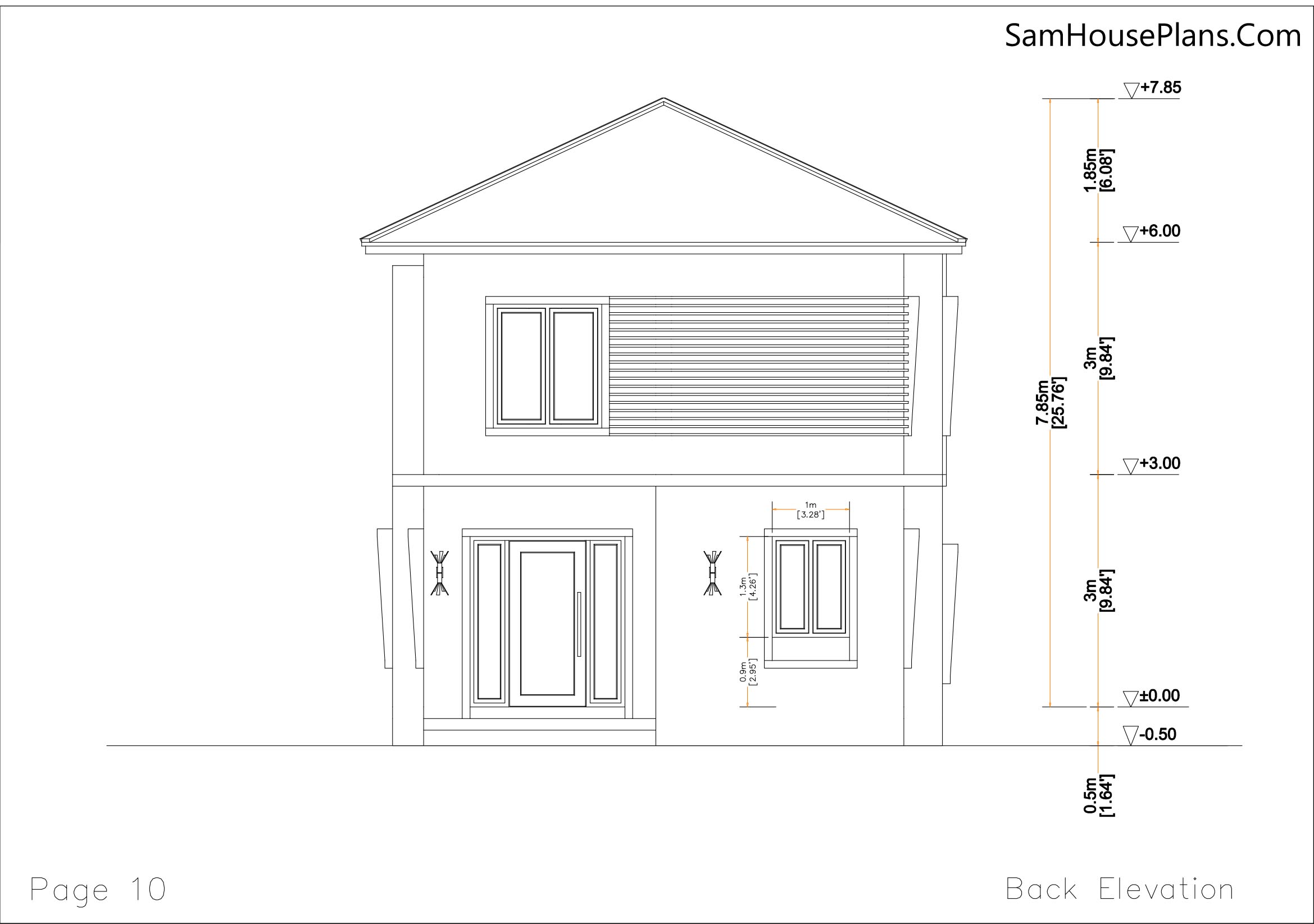

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

House Short Description:

Ground floor:
-2 Cars Park is at the left side of the house
-Living room, Family room
-Kitchen and Dinning
-Public bathroom

First floor:
-3 Bedrooms
-2 Bathrooms

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

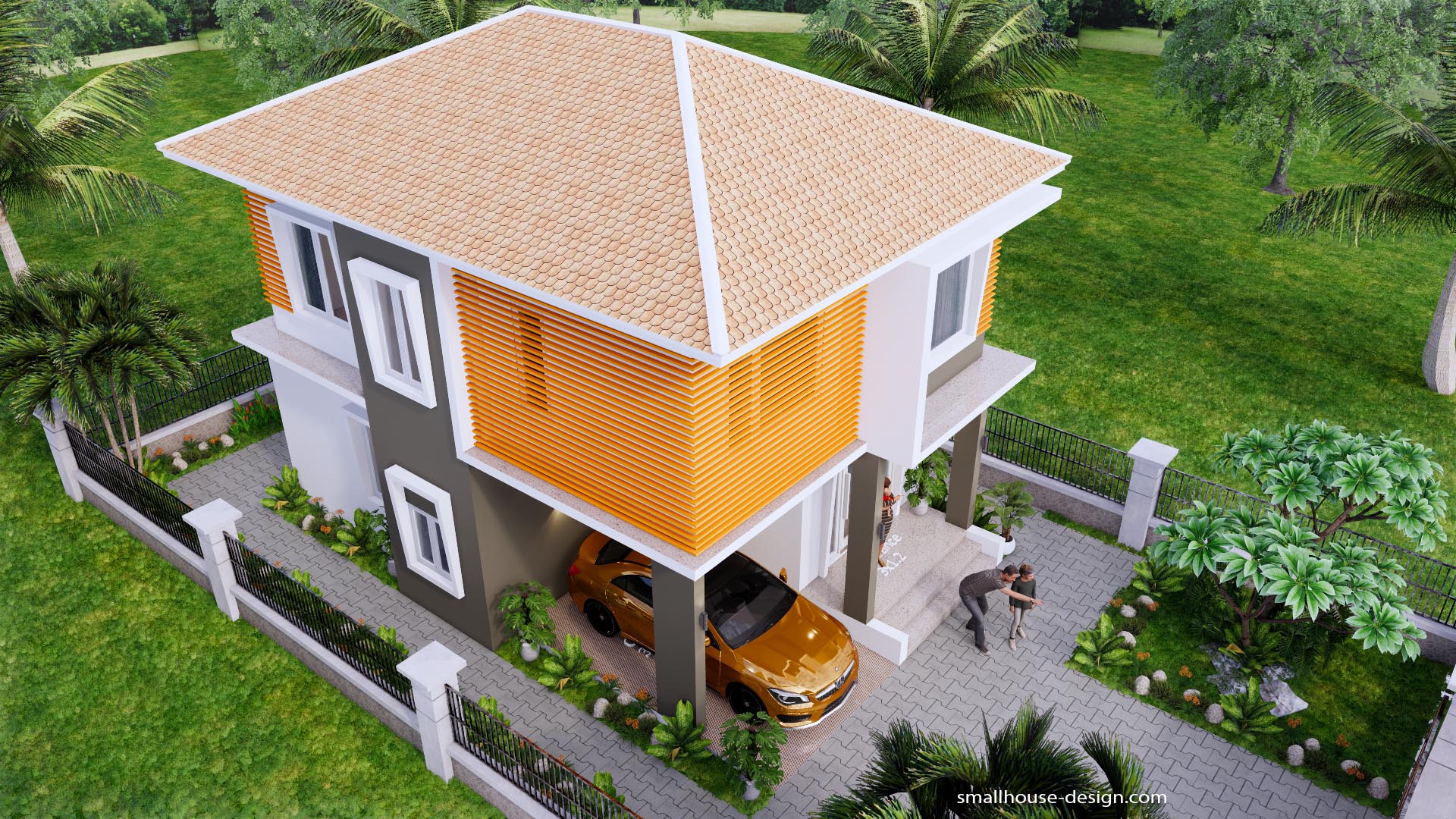

The 3D Bird View:

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.


The Elevation 3d:

The PDF Layout Plans:

Small House Design 6x9 Meter 20x30 Feet 3 Beds 3 Baths All layout plan

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 20 feet wide, 30 feet deep. 6×9 meter 2 floor

Roof Type: Hip roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

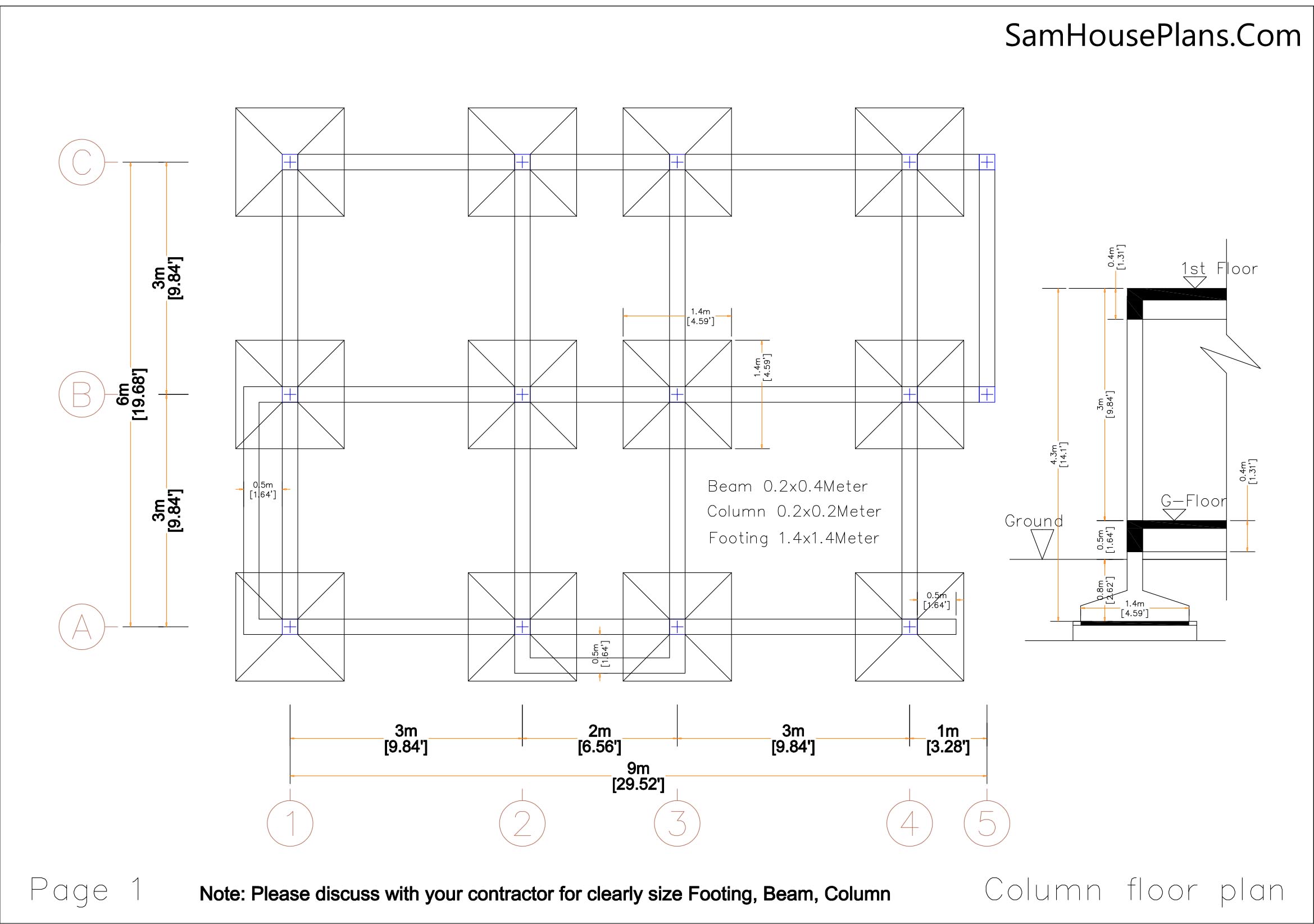

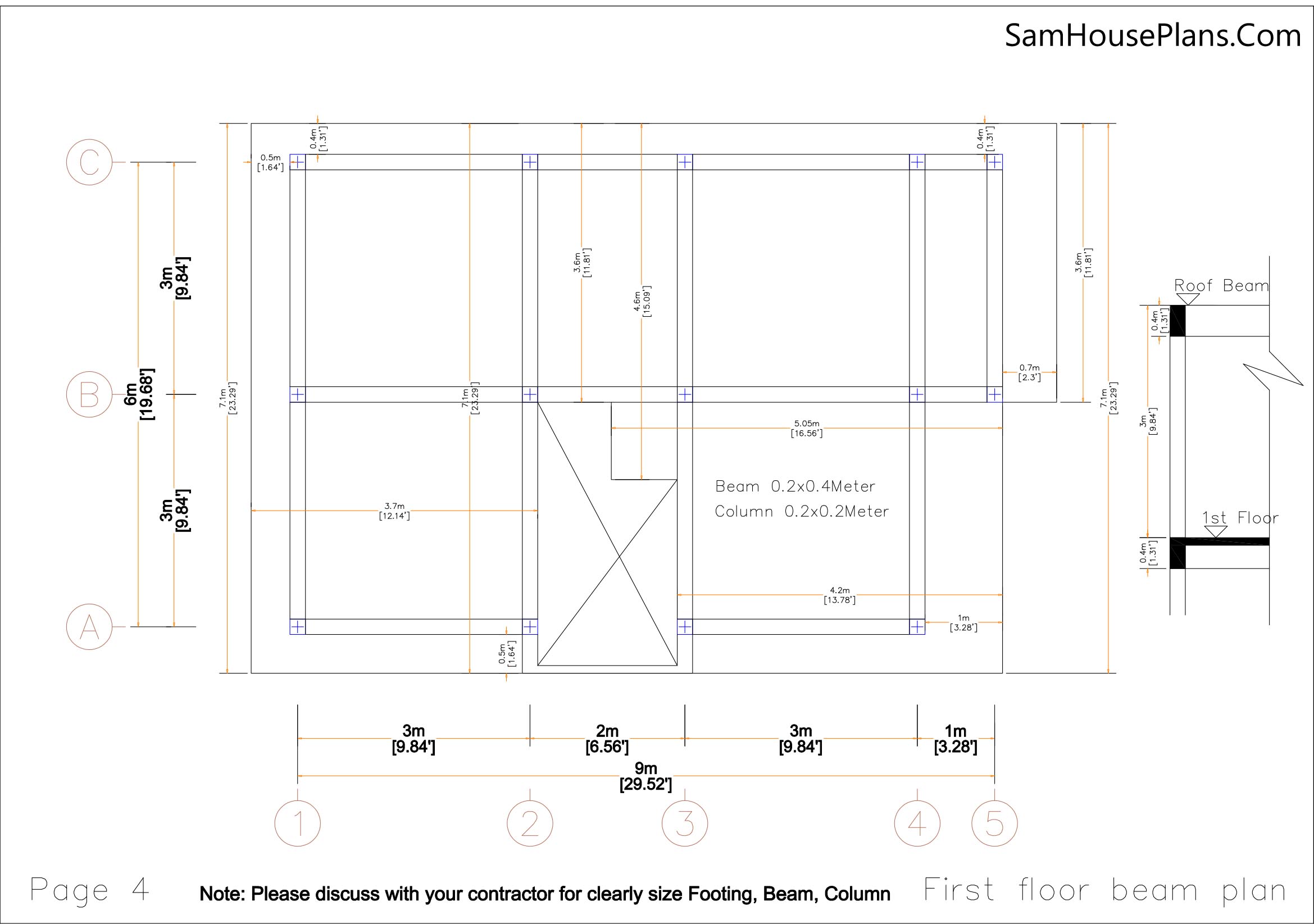

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

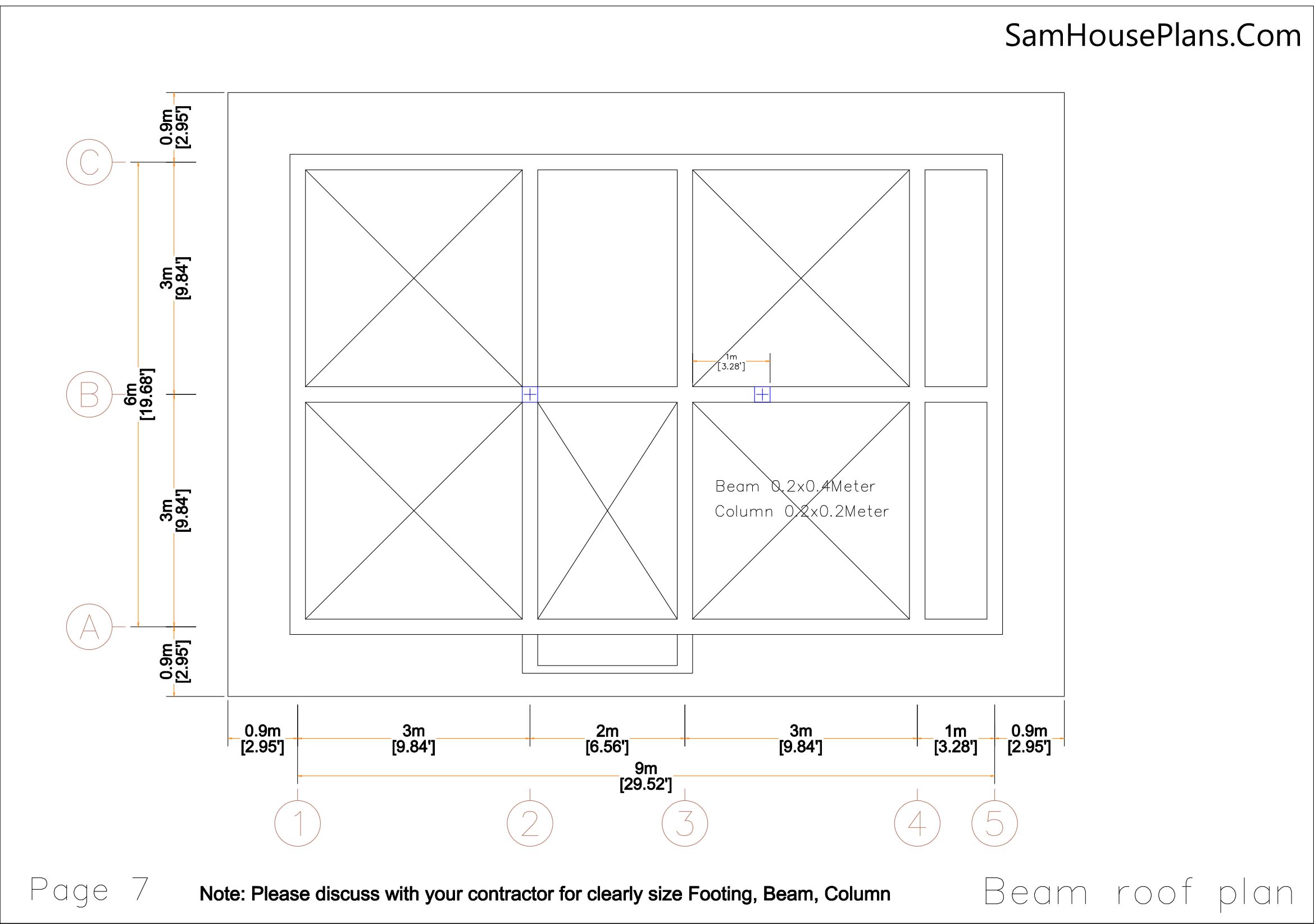

Roof Beam Plan

Roof Plan

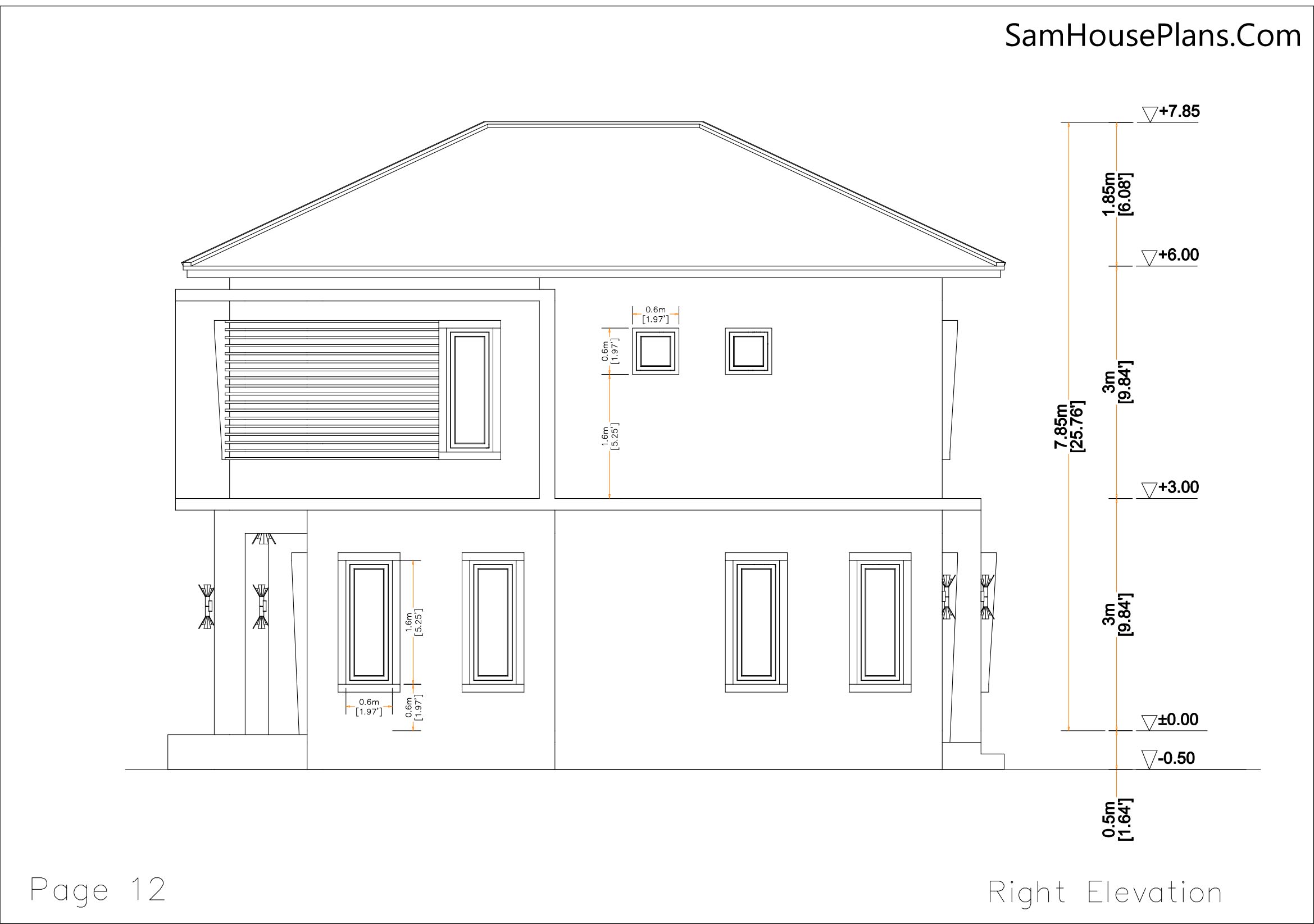

Elevations plans

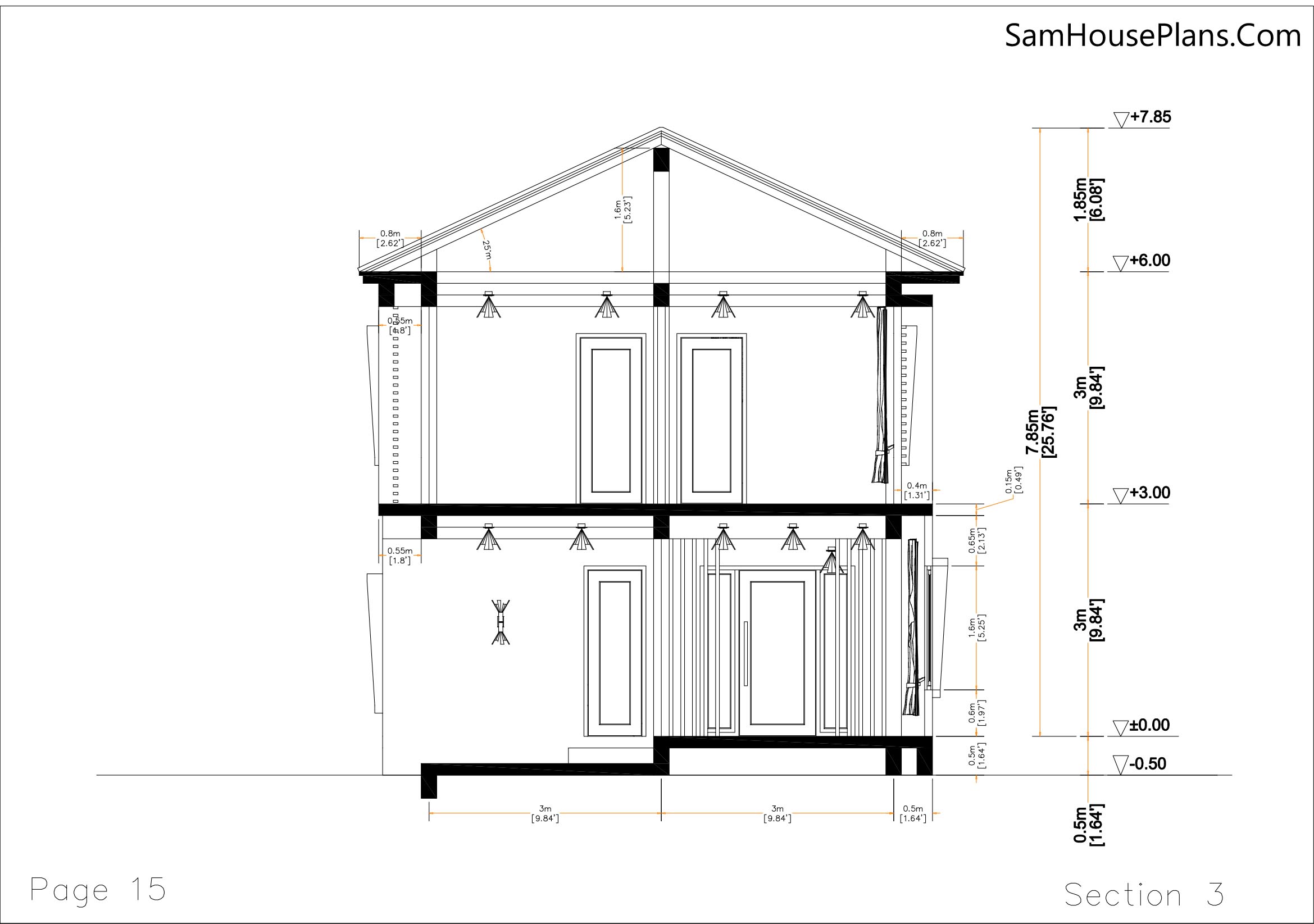

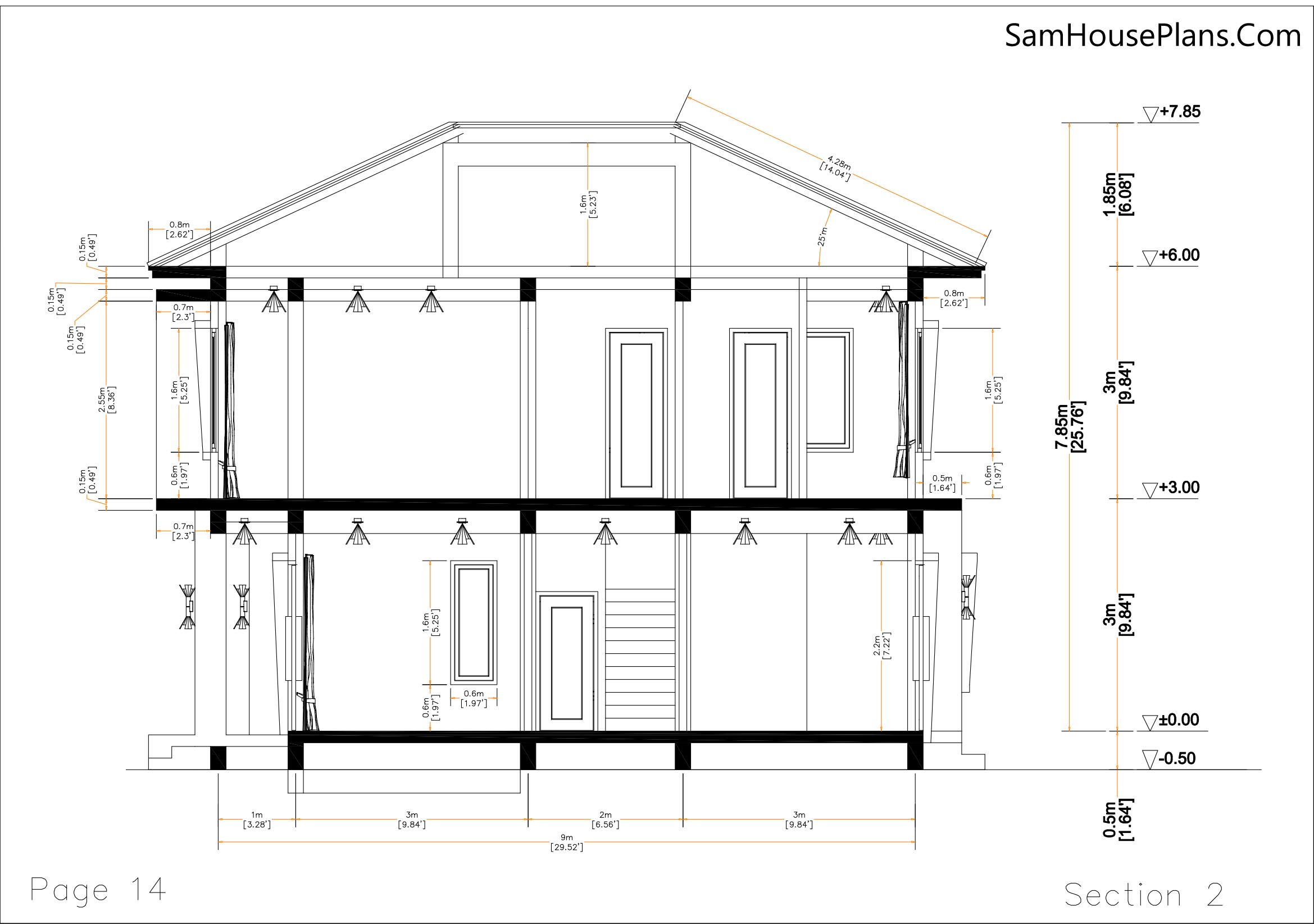

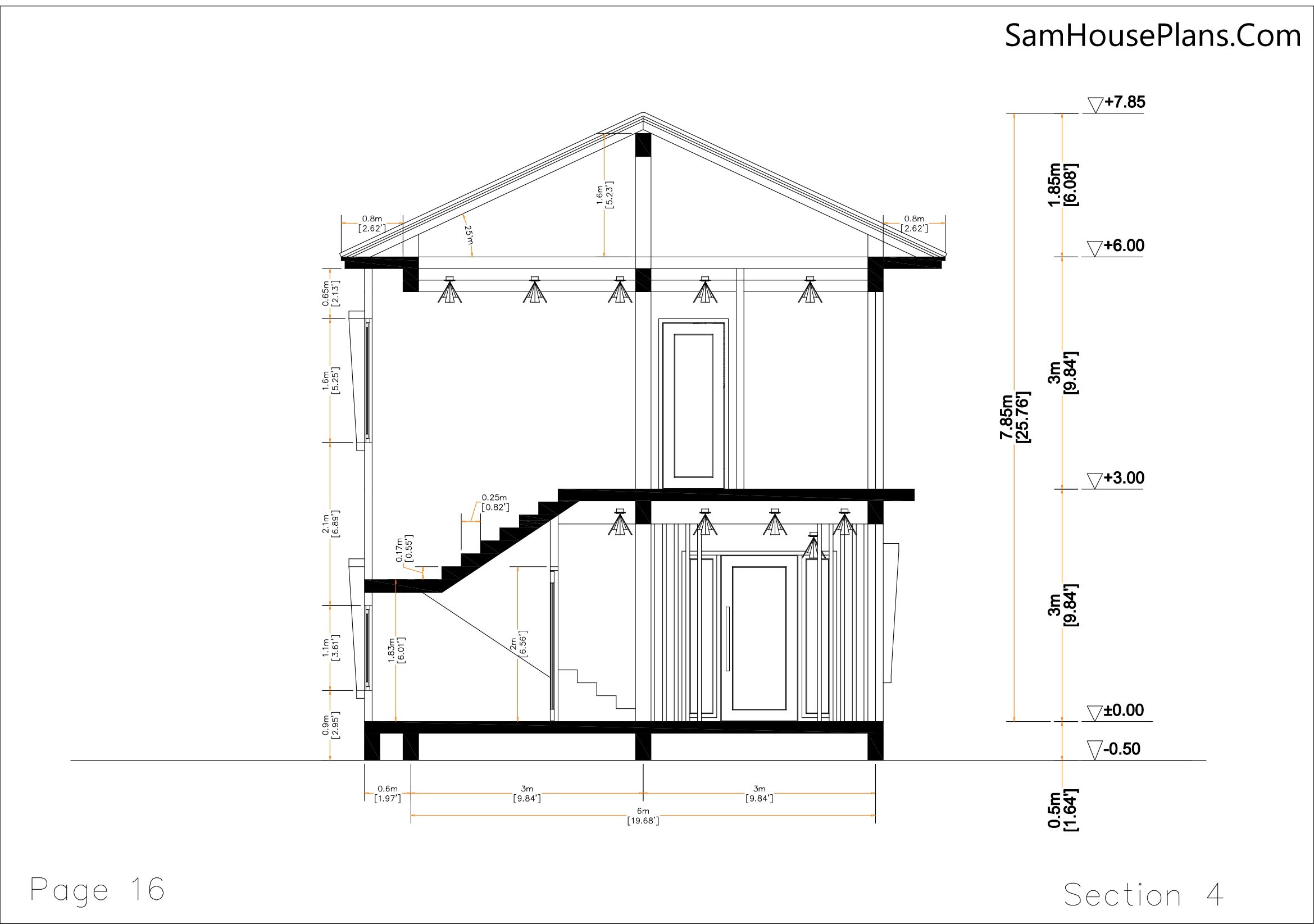

Cross Section plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.


Unfortunately I’m unable to do custom plans at this time.


These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
