46×30 Small House Plan 14×9 Meter 3 Beds


Buy this: 46×30 Small House Plan
-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. Section
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2019


Categories: , Tag:


49×30 Small House Plan 15×9 Meter 3 Beds 3 Baths Hip Roof. This villa is modeling by SAM-ARCHITECT With 2 stories level. It’s has 3 bedrooms. Est. Price around 30-40k usd construction only, furniture not include.

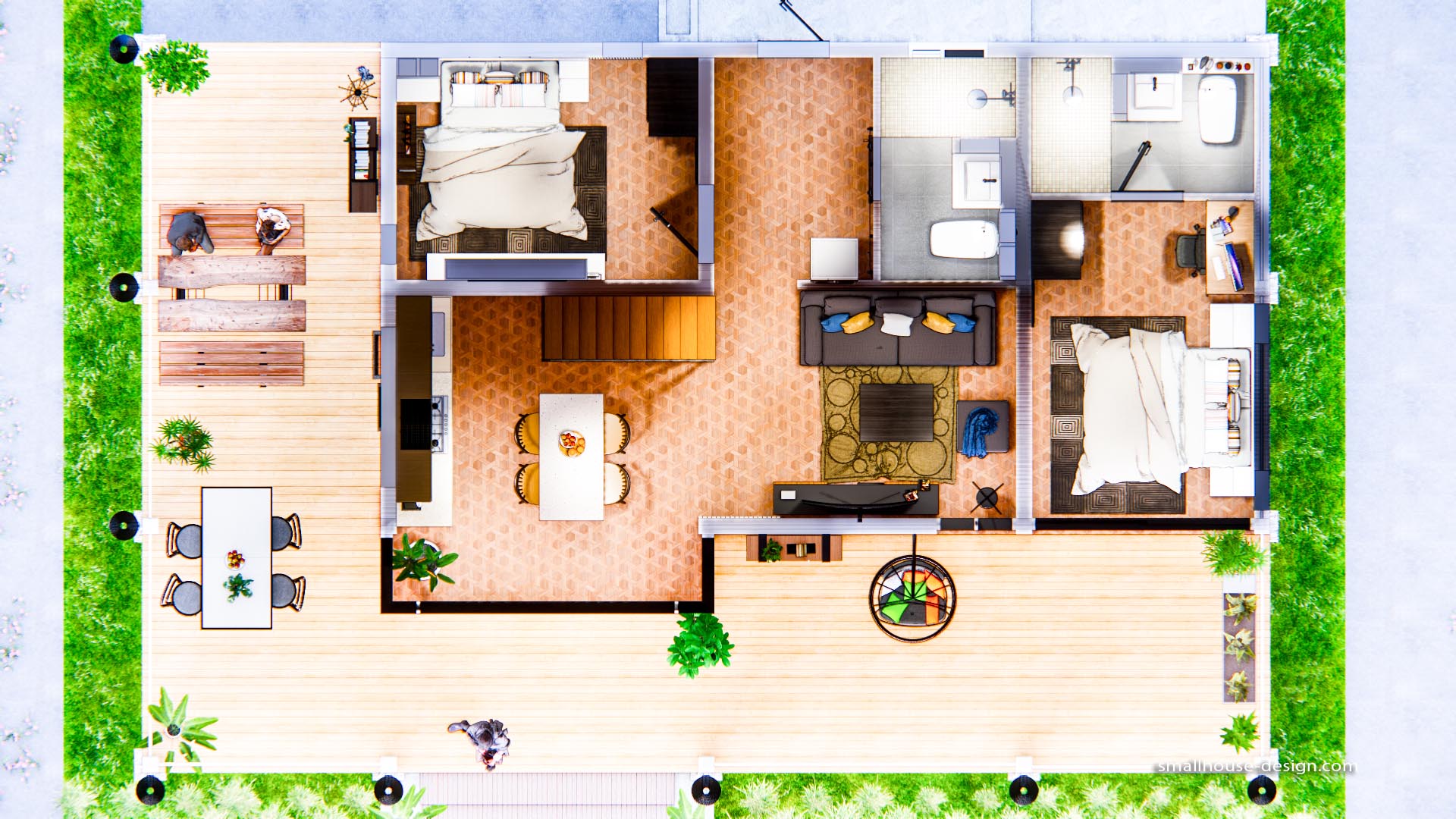

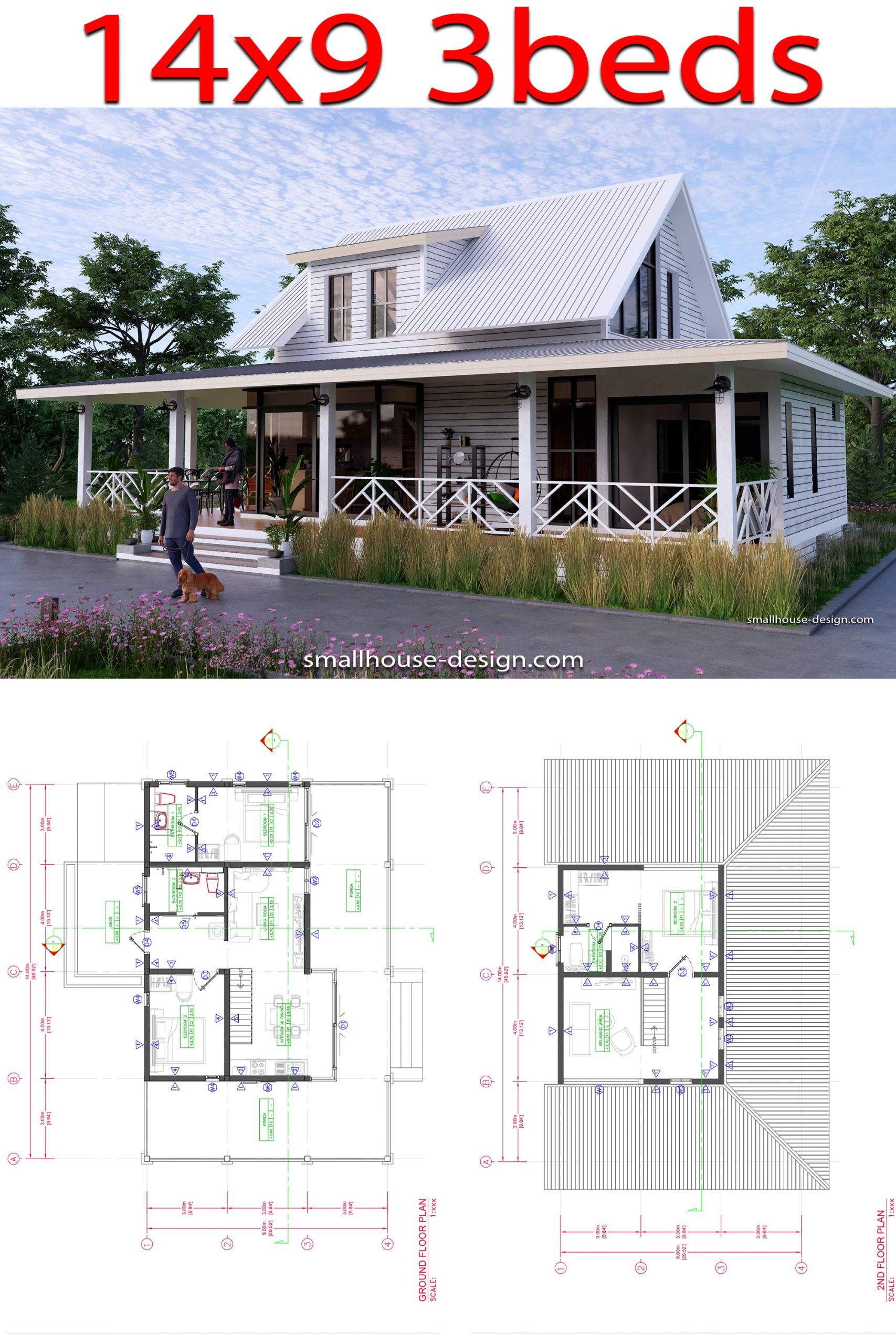

46×30 Small House Plan Ground Floor Plans Has:

This modern country house layout plan has cars Parking is out side of the house. A nice Terrace entrance in front of the house. When we are going from front door a nice dining with kitchen 3.8×4 meter, at the right hand a Living 3×4 meters is very perfect for this house it is nice and modern. Storage is under the stair. Bathroom 3×1.8 meter. Bedroom 1 size is 3×4.1 meter with big sliding glass door to balcony and attached bathroom 1.8×3 meter, Washing room 2×3 meters. Bedroom 2 size is 4×3 meter.

Finally, at first floor: the Bedroom 3 size is 3×4 meters attached with bathroom 1.9×3 meters, it also has a big slide window with a queen size bed, Makeup desk and walk in closet 2.1×3 meter. Family room 6×4 meter.

Exterior 46×30 Small House Plan:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Roof Tile:

Finally, The Gable roof type is made from zine tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

46x30 Small House Plan 14x9 Meter 3 Beds Full PDF Plan ROOF

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

House Short Description:

Ground floor:
-Car Park is out side of the house
-Living room
-Kitchen and Dinning

-Master Bedroom

-Public bathroom

First floor:
Roof tiles

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

The 3D Bird View:

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.

The Elevation 3d:

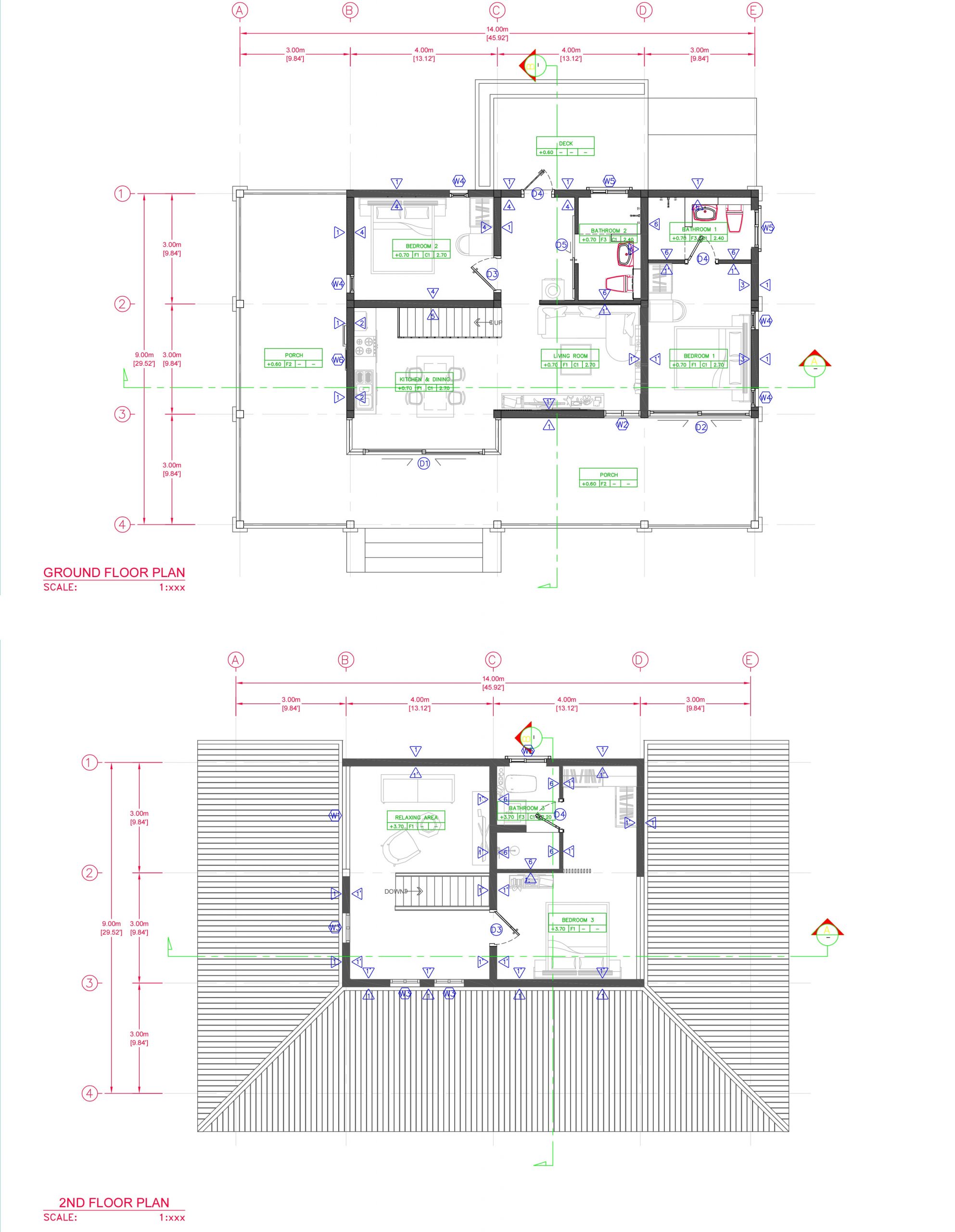

The PDF Layout Plans:

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 46 feet wide, 30 feet deep. 14×9 meter 1 floor

Roof Type: Gable roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.


Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Cross Section plans

Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.


Unfortunately I’m unable to do custom plans at this time.


These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
