23×30 Feet House Plan 7×9 Meter 3 Beds 3 Baths

$29.99

Buy this: 15×54 Home Design Plan 4.5×16 Meter 3 Bedrooms PDF Full Plans

-Footing, Beam, and column location
-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. 4 Sections, Light location plan.
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2010 and Sketchup 2019

Click Here to Download the Sample Plan

Description

23×30 Feet House Plan 7×9 Meter 3 Beds 3 Baths Terrace Roof PDF Plan. This is a 23×30 feet house plan with 7×9 meters of total floor space, 3 bedrooms, and 3 bathrooms. The terrace is roofed and has an area of 121 square meters.



23×30 Feet House Plan Ground Floor Plans Has:

This 23×30 Feet House Plan 7×9 Meter 3 Beds 3 Baths Terrace Roof PDF Plan is a great choice for anyone looking to build a house with an open floor plan and plenty of natural light. The spacious kitchen features an island, walk-in pantry, and stainless steel appliances, while the dining area opens up to the large living room with a big glass.

The master suite has a walk-in closet and access to the covered patio. Two additional bedrooms share a full bathroom in the hall.

23x30 Feet House Plan 7x9 Meter 3 Beds 3 Baths Terrace Roof PDF Plan layout plan

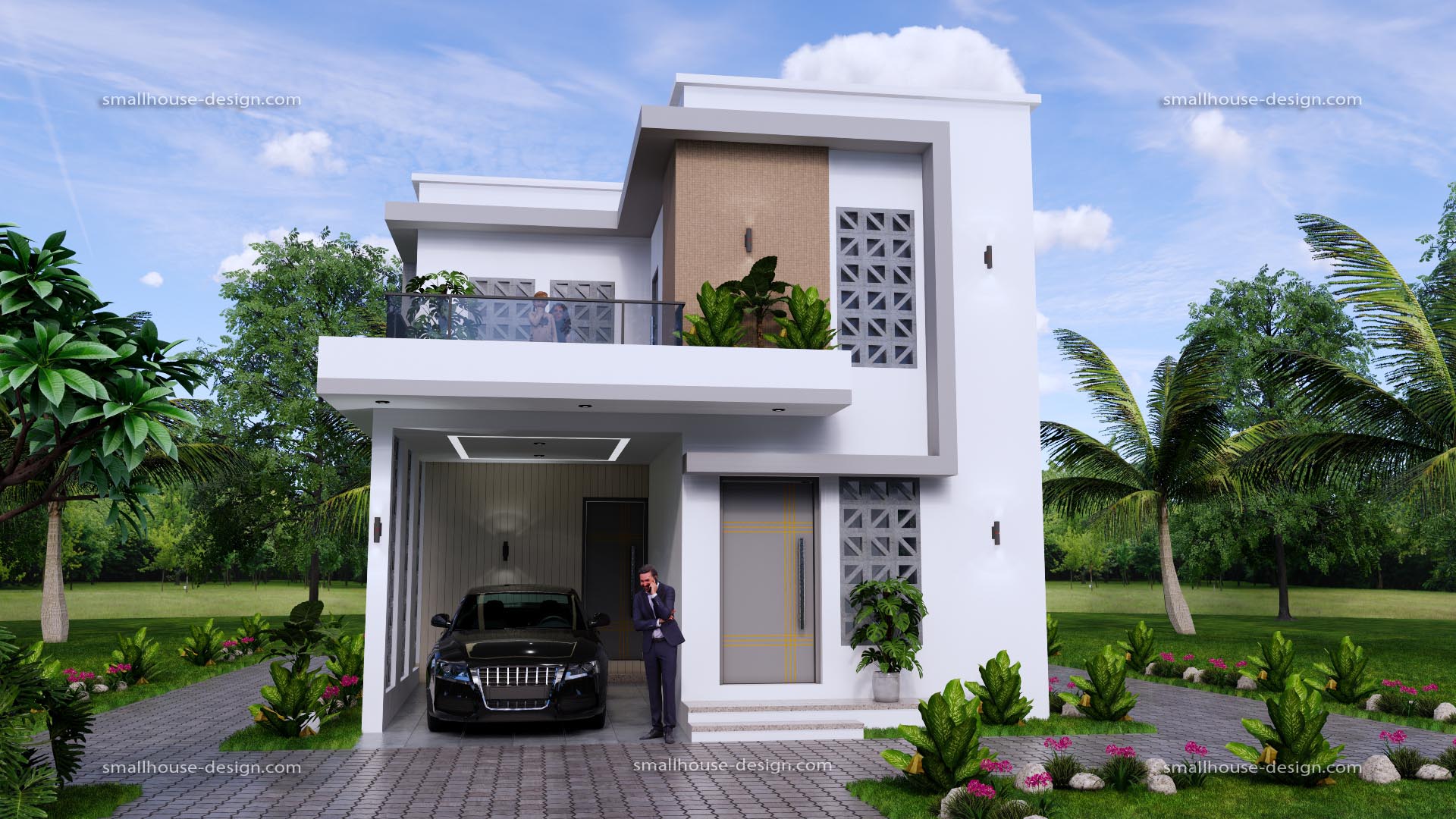

Exterior 23×30 Feet House Plan:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

23x30 Feet House Plan 7x9 Meter 3 Beds 3 Baths Terrace Roof PDF Plan layout plan

The Terrace Roof Tile:

This house plan will provide you with a spacious, comfortable and elegant home for your family.

This house plan is designed for a family of four or five. It has three bedrooms, Three bathrooms and a large living room. The kitchen is spacious, well-equipped and provides easy access to the dining area. The terrace has a beautiful view of the garden.

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

23x30 Feet House Plan 7x9 Meter 3 Beds 3 Baths Terrace Roof PDF Plan 7

House Short Description:

Ground floor:
-1 Car Park is at the left side of the house
-Living room, Family room
-Kitchen and Dinning
-Storage
-Public bathroom

First floor:
-3 Bedrooms
-3 Bathrooms
-Balcony

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

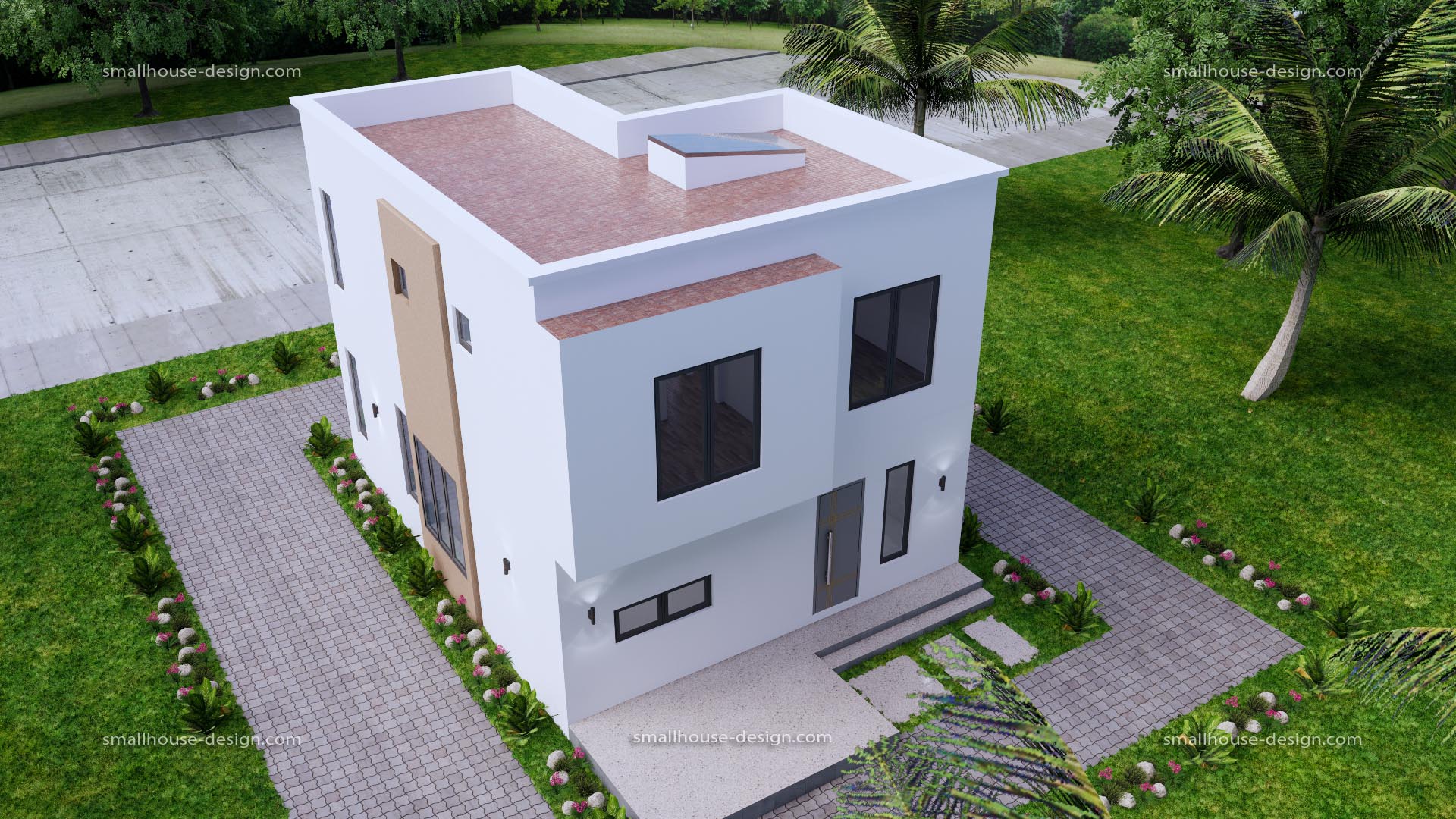

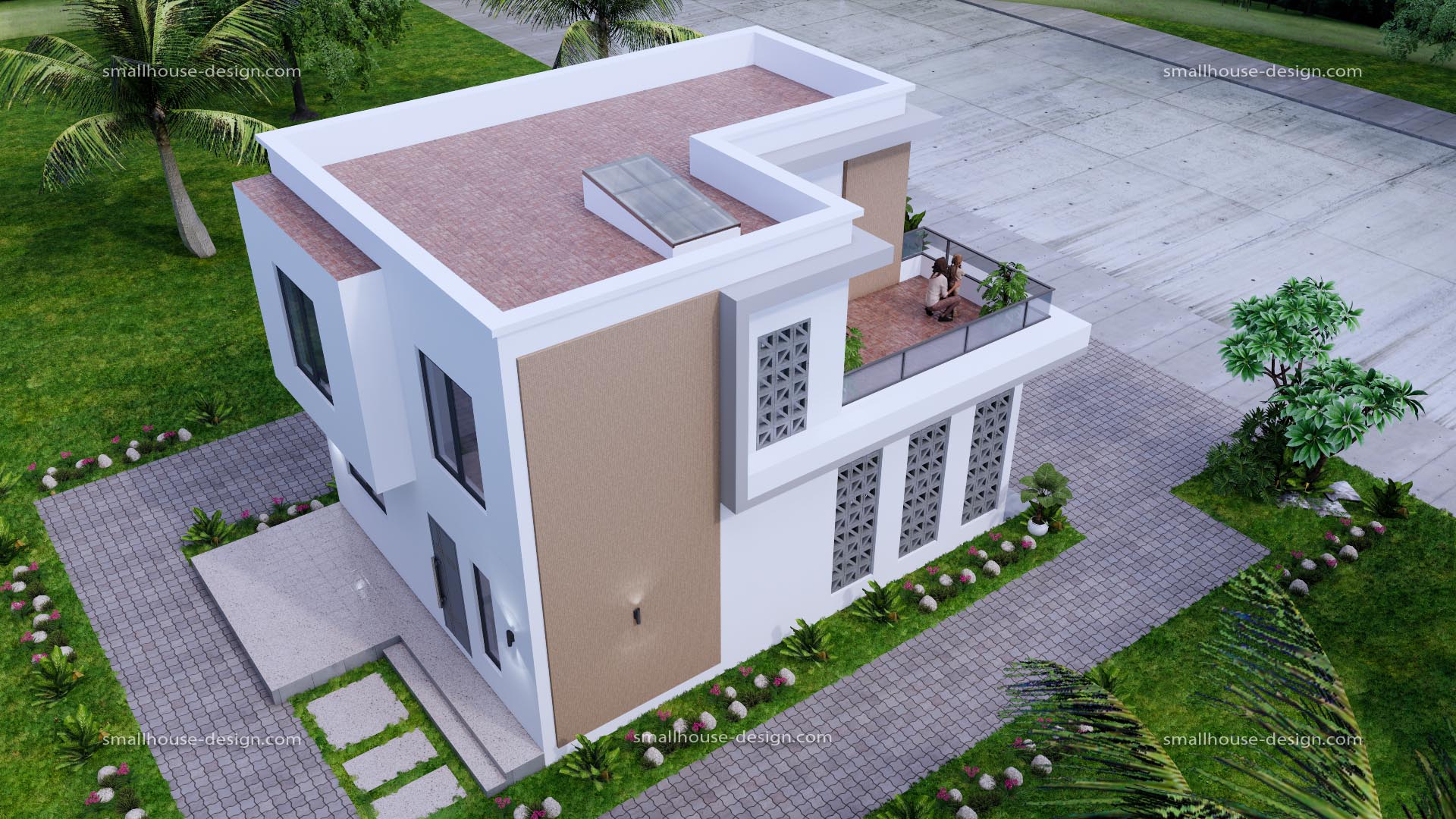

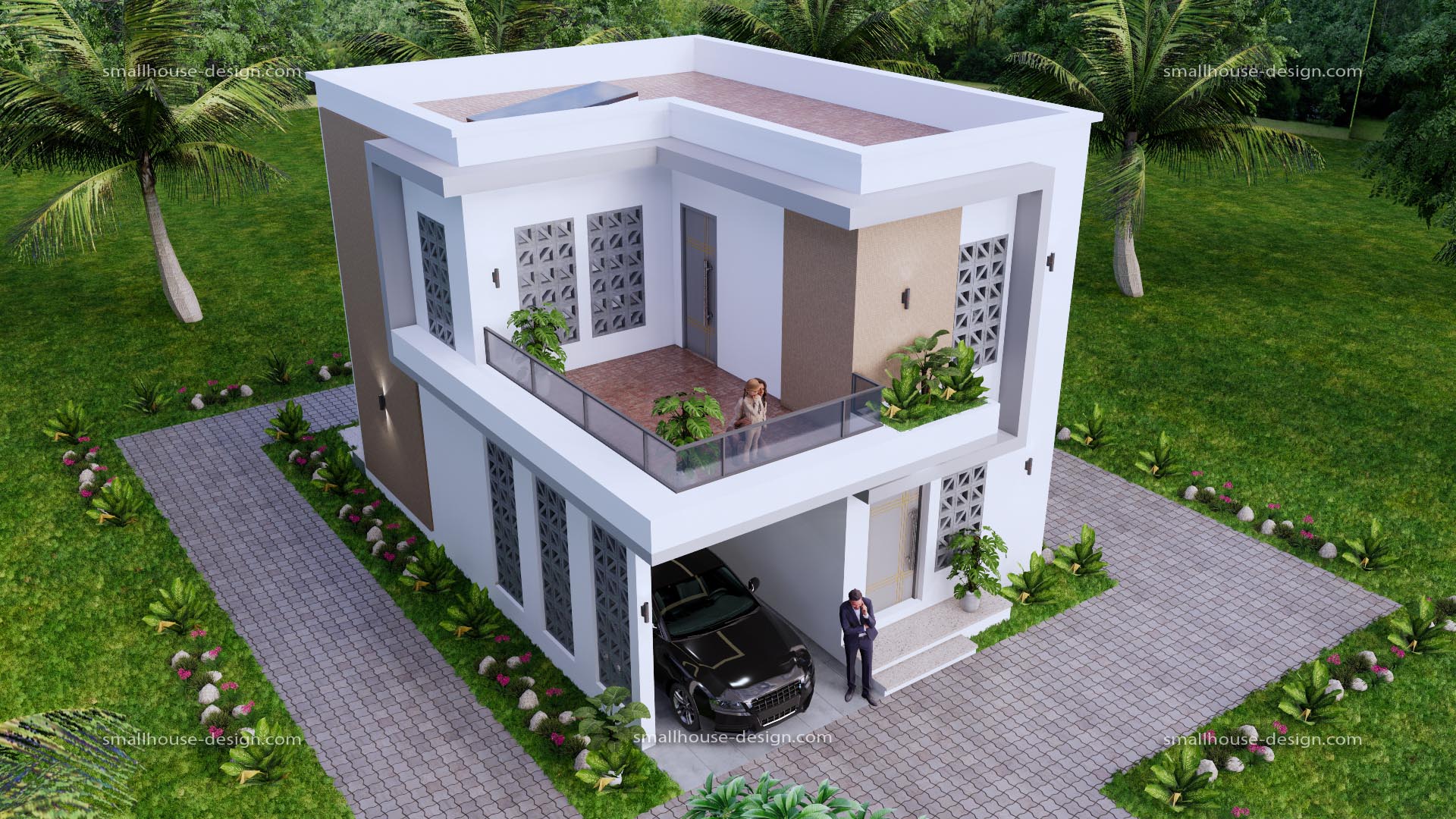

The 3D Bird View:

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.



The Elevation 3d:

The PDF Layout Plans:

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 15 feet wide, 55 feet deep. 4.5×16 meter 2 floor

Roof Type: Terrace roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Cross Section plans

Light location plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
